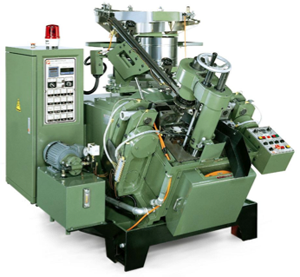

Self-Drilling Forming Machine

Function：Self-Drilling Screw Production
Features：High speed, stable, durable

We have 6 types of Self-Drilling Forming Machine:

CN14-125 ，CN14-125-2S (for stainless steel screw)
CN14-127 ，CN14-127-2S (for stainless steel screw)
CN14-203 ，CN14-203-2S (for stainless steel screw)

Model no.	CN14-125 CN14-125-2S	CN14-127 CN14-127-2S	CN14-203 CN14-203-2S
Main Motor	5.5KW, 6P, 3PH (7.5HP)	7.5KW, 6P, 3PH (10HP)	7.5KW, 6P, 3PH (10HP)
Voltage	Assigned by client
Inverter	7.5KW (10HP)	Taiwan: 11KW (15HP) China: 7.5KW (10HP)	Taiwan: 11KW (15HP) China: 7.5KW (10HP)
Production Speed	120~520 pcs/min (Single Stroke)	80~520 pcs/min (Single Stroke)	80~520 pcs/min (Single Stroke)
Production Speed	60~150 pcs/min (Double Stroke)	40~150 pcs/min (Double Stroke)	40~150 pcs/min (Double Stroke)
Wire Diameter	#6 (∮2.8)~#14(∮5.45) No.1~No.3	#6 (∮2.8)~#14(∮5.45) No.1~No.5	#6 (∮2.8)~#14(∮5.45) No.1~No.5
Screw Length	9.5mm~125mm	9.5mm~127mm (3/8"~5")	16mm~203mm (5/8"~8")
Die Holder	MB或 MA (assigned by client)	MB或 MC (assigned by client)	MB或 MC (assigned by client)
Vibrator Feeder	∮620mm + silent PU gelatin spraying	∮720mm + silent PU gelatin spraying	∮850mm + silent PU gelatin spraying
Auto-Action Controller	PLC Controller
Machiner Weight	approx. 1994 KG (2S：+2KG）	approx. 2206 KG (2S: +2KG)	約2354 KG (2S: +2KG)
Add-on equipments	Material Supply Stand

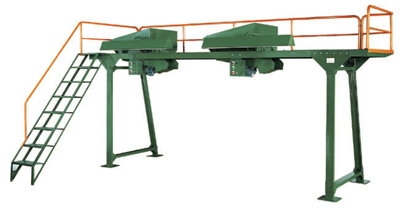

Add-on equipment：Material Supply Stand

We have a policy of continuous product improvement. We reserve the right to change design and specifications without prior notice.
