Point Slotting Machine

We have the following Point Slotting Machine：

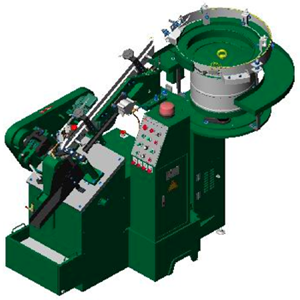

C150

Model no.	C150
Cutter Motor	0.37KW, 6P, 3PH (1/2HP)
Split Reducer Motor	0.37KW, 4P, 3PH ( 1/2HP 1:3 )
Inverter	Cutter Motor 0.75KW (1HP)
Inverter	Split 0.75KW (1HP)
Cutting fluid Motor	0.1KW, 3PH (1/8HP)
Auto-Action Controller	PLC Controller
Vibrator Feeder	∮750 + silent PU gelatin spraying
Voltage	Assigned by client
Cutter Size	(Tungsten Steel) ∮75x64Tx(3.0t,2.5t,2.0t) hole∮25.4
	(High Speed Steel)∮75x60Tx(3.0t,2.5t,2.0t) hole∮25.4
	Short Screw (Tungsten Steel) ∮45x40Tx(3.0t,2.5t,2.0t) hole∮25.4
	Short Screw (High Speed Steel)∮45x34Tx(3.0t,2.5t,2.0t) hole∮25.4
Self-tapping Screw	ST 3.5 ~ ST 6.3 (TYPE:17 & 25)
Machine Screw	M3 ~ M6 (TYPE:23)
Screw Length	15~150
Production Speed	approx. 50~320 pcs/min
Machine Weight	approx. 960 KG

We have a policy of continuous product improvement. We reserve the right to change design and specifications without prior notice.
