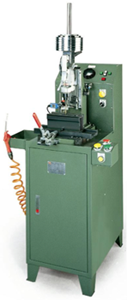

Testing Machine

We have 6 types of Testing Machine：

25 series:
TC-25 / TC-25L
TB-25 / TB-25L
T-25 / T-25L / T-25LL

20 series:
TC-20 / TC-20L
TB-20 / TB-20L
T-20 / T-20L / T-20LL

25 series
Model no.	TC-25 / TC-25L	TB-25 / TB-25L	T-25 / T-25L / T-25LL
Drill Brand	MAKITA (JAPAN)
Drill Model	6801N
Drill RPM	1800~3400 RPM
Screw Size	#6~#12 No.1~No.3
Screw Length	TC-25: 9.5mm~109mm	TB-25: 9.5mm~109mm	T-25: 9.5mm~109mm
	TC-25L: 9.5mm~180mm	TB-25L: 9.5mm~180mm	T-25L: 9.5mm~180mm
			T-25LL: 9.5mm~210mm
Machine Weight	TC-25: approx. 144 KG	TB-25: approx. 138 KG	T-25: approx. 127 KG
Machine Weight	TC-25L: approx. 145 KG	TB-25L: approx. 139 KG	T-25L: approx. 128 KG
Air Source	>= 5 KG/cm2	>= 5 KG/cm2
Remarks	Electric drill and the testing plate moves automatically. Test result can be connected with computer. Client has to prepare air compressor 2P - 3P.	Electric drill and the testing plate moves automatically.	Electric drill and the testing plate moves manually.

20 series
Model no.	TC-20 / TC-20L	TB-20 / TB-20L	T-20 / T-20L / T-20LL
Drill Brand	DEWALT (U.S.A)
Drill Model	DW-267
Drill RPM	800~2000 RPM
Screw Size	#12~#14 No.3~No.5
Screw Length	TC-20: 9.5mm~90mm	TB-20: 9.5mm~90mm	T-20: 9.5mm~90mm
	TC-20L: 9.5mm~150mm	TB-20L: 9.5mm~150mm	T-20L: 9.5mm~150mm
			T-20LL: 9.5mm~180mm
Machine Weight	TC-20: approx. 146 KG	TB-20: approx. 140 KG	T-20: approx. 129 KG
Machine Weight	TC-20L: approx. 147 KG	TB-20L: approx. 141 KG	T-20L: approx. 130 KG
Remarks	Electric drill and the testing plate moves automatically. Test result can be connected with computer.	Electric drill and the testing plate moves automatically.	Electric drill and the testing plate moves manually.

We have a policy of continuous product improvement. We reserve the right to change design and specifications without prior notice.
