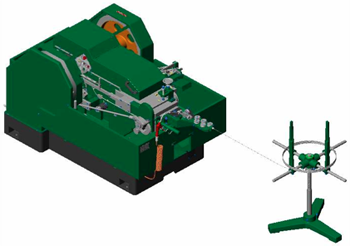

| Heading Machine |
| Model no. |
H15-37-BP |
H15-50-BP |
H15-63-BP |
H15-76-BP |
| Main Motor |
2.25KW, 4P, 3PH (3HP) |
| Voltage |
Assigned by client |
| Oil Motor |
0.33KW, 4P, 3PH (1/4HP+12A) |
| Main Die |
∮34.5x55.5 |
∮34.5x67.5 |
∮34.5x80.5 |
∮34.5x100.5 |
| 1st Punch Die |
∮31x73 |
| 2nd Punch Die |
∮31x73 |
| Cut-off Die |
∮19x35 |
| Cut Knife |
9x32x64 |
| Wire Diameter |
∮2.3~5.0 |
| Screw Length |
6mm~37mm |
6mm~50mm |
6mm~63mm |
6mm~76mm |
| Production Speed |
170 ~ 190 pcs/min |
150 ~ 170 pcs/min |
130 ~ 150 pcs/min |
100 ~ 130 pcs/min |
| PKO Length |
10mm |
| Machine Weight |
approx. 1850 KG |
| Add-on Equipments |
Sensor, Conveyor, Light stand |
| |
| High speed Heading Machine |
| Model no. |
H15-37-BH |
H15-50-BH |
| Main Motor |
3KW, 4P, 3PH (4HP) |
| Voltage |
Assigned by client |
| Oil Motor |
0.33KW (1/4HP+12A),4P,3PH |
| Main Die |
∮34.5x55.5 |
∮34.5x67.5 |
| 1st Punch Die |
∮31x73 |
| 2nd Punch Die |
∮31x73 |
| Cut-off Die |
∮19x35 |
| Cut Knife |
9x32x64 |
| Wire Diameter |
∮2.3~5.0 |
| Screw Length |
6mm~37mm |
6mm~50mm |
| Production Speed |
190~210 pcs/min |
170~190 pcs/min |
| Machine Weight |
approx. 1835 KG |
| Add-on Equipments |
Sensor, Conveyor, Light stand |
| |

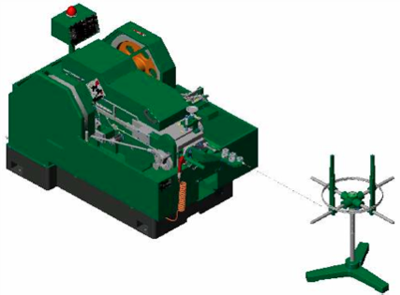

| Add-on equipment：Sensor |
 |
| |

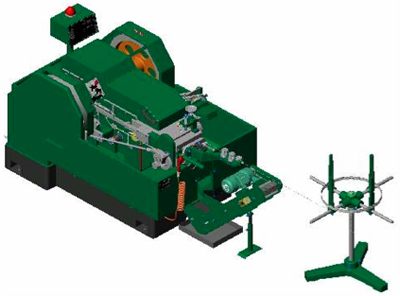

| Add-on equipment：Sensor + Conveyor |
 |
| |

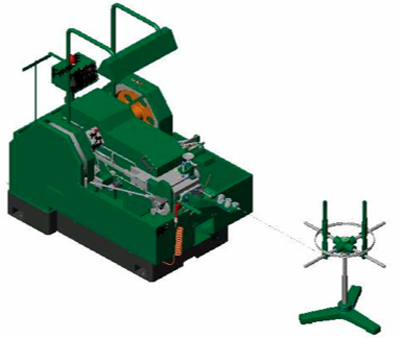

| Add-on equipment：Sensor + Light stand |
 |
| |

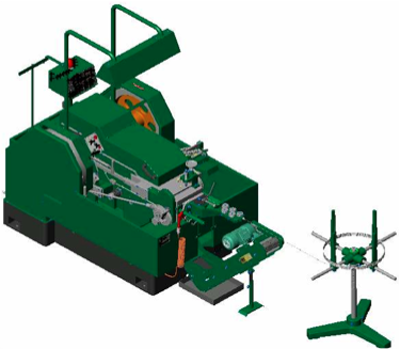

| Add-on equipment：Sensor + Conveyor + Light stand |
 |
| |
|
